| Model Name |

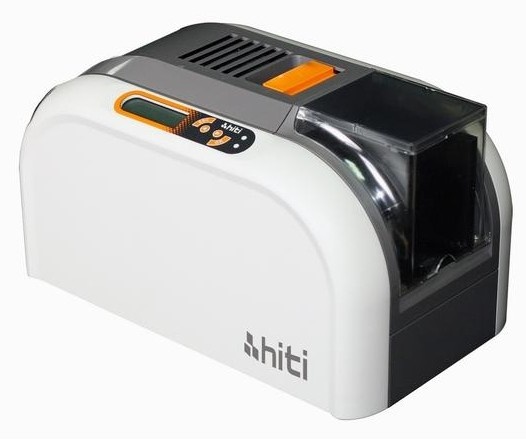

• HiTi ID card printer CS-200e |
| Print Technology |
• Dye Sublimation (Direct-to-card) |
| Print Capability |
• Edge-to-edge printing
• One-sided or dual-sided printing*
• Full color (YMCKO) and monochrome printing |
| Print Resolution |
• 300dpi |
| Display |
• LCM (Liquid Crystal Monitor) |
| Memory |
• 64MB |
| Print Speed** |
• Full color printing (YMCKO) up to 180 cards per hour
• Monochrome black printing up to 1400 cards per hour |
| Card Format |
• CR-80 ISO7810 (53.98mm x 85.60mm)
Thickness from 0.25mm~1.0mm (10mil~40mil) |
| Input Capacity |
• 100 cards (0.76mm / 30mil) |
| Output Capacity |
• 50 cards (0.76mm / 30mil) |
| Supported OS |
• Windows 2000, XP, Vista, Windows 7 (32/64-bit), Windows 8 ( 32/64-bit)
• Mac OS 10.6, 10.7, 10.8 |
| Bundled Software |
• CardDésireé CS (For Windows PC only) |
| Computer Interface |
• USB2.0, Ethernet (Optional Module Required) |
| Printer Dimension |
• 197.8mm(W) x 354mm(L) x 204(H)mm |
| Printer Net Weight |
• 4.9kg / 10.8lbs (print media excluded) |
| Operating Condition |
• 15~32° C (59~89.6°F), 20~75% RH non-condensing |
| Print Media |
• Full panel YMCKO 400 roll (Ribbon only), 16 rolls in a carton
• 1/2 panel YMCKO 560 roll (Ribbon only), 16 rolls in a carton
• Monochrome Resin Black 1000 roll (Ribbon only),
16 rolls in a carton
• YMCKOK 330 roll (Ribbon only), 16 rolls in a carton |
| Optional Encoding Modules |
• Contact Smart Card Encoding Module |
|
Optional Encoding Modules
(SDK upon request)
|
• Contact smart IC chip encoding module
• Contactless (RFID) encoding module
(ISO 14443A & B, ISO 15693)
• Magnetic stripe card encoding module (ISO 7811 Hi-co/Low-co)
|
Other Options &
Accessories |
• Flipper module
• High capacity input hopper (400 cards loader)
• Ethernet TCP-IP connection module – Availability to be updated
• Cleaning roller (Dust arrester excluded) – Availability to be updated |
